Features

Download

Online

Gallery

Blog

  Index  | Recent Threads  | List Attachments  | Help  | Search
 Welcome Guest  |  Register  |  Login
Login Name  Password


Sweet Home 3D Forum



No member browsing this thread
Thread Status: Active
Total posts in this thread: 30
Posts: 30   Pages: 3   [ 1 2 3 | Next Page ]
[ Jump to Last Post ]
Post new Thread
Author
Previous Thread This topic has been viewed 2786 times and has 29 replies Next Thread
qythyx
Newbie



Japan
Joined: Aug 31, 2017
Post Count: 19
Status: Offline
Reply to this Post  Reply with Quote
How to create a down light embedded in the ceiling

Does anyone have any experience or ideas about how to make a down light embedded in the ceiling?

I played around with a few ideas and didn't get anything working, but I think I thought of a way to do this. It would be a bit difficult, so I'm hoping someone has better ideas.

Here's my idea:

It seems the only way to cut out a hole in a ceiling is using stairs, so I would create a fake round stairs just for this purpose. Fortunately, even if you set all of the textures as invisible it will still cut the hole.

Next, it seems the stairs will always cut a whole all the way through the ceiling, where I want it only partially cut. So, I would need to create two levels of ceiling and have the stairs cut only through the bottom one.

Finally, I would then position a down light object in the same place as the stairs.

I think this will work. If I group the light and the stairs then it should be manageable. The biggest problem is that I would need to make sure the two layers of ceiling are always aligned correctly.


Any other ideas are welcome.
[Sep 19, 2017 4:04:27 AM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
Ceciliabr
Advanced Member
Member's Avatar

Denmark
Joined: Jul 7, 2013
Post Count: 205
Status: Offline
Reply to this Post  Reply with Quote
Re: How to create a down light embedded in the ceiling

Using stairs is a very inventive method.

I have done something similar, but instead of using stairs, I have created a pipe
and imported it as stairs – so that it makes a hole in ceilings and floors.
If you insert a light source inside, you have a downlight with
adjustable light angle.

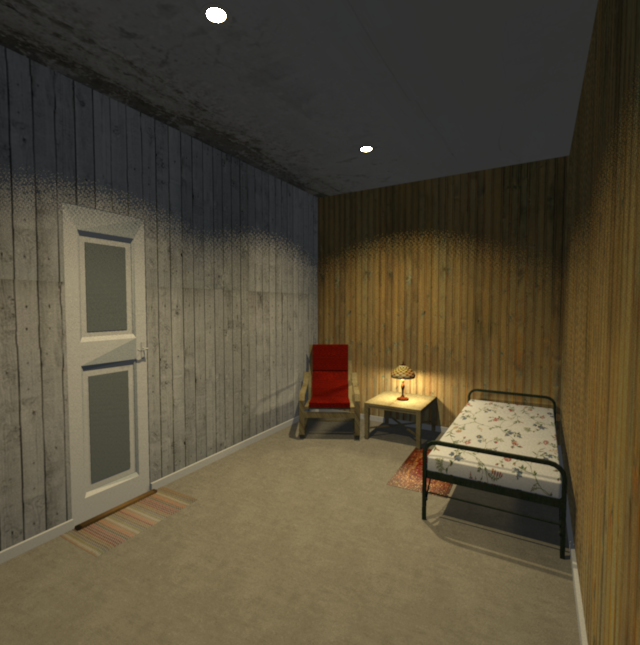

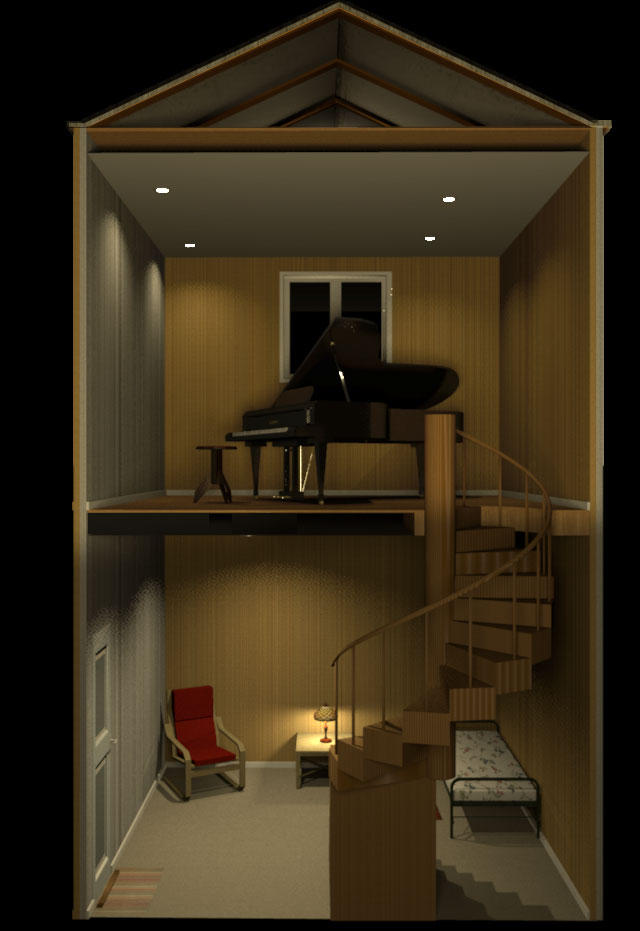

My downlight is here if you want it.
Just copy the group to your project.


Cec
[Sep 19, 2017 11:34:36 AM] Show Printable Version of Post    View Member Profile    Send Private Message    http://cecprojects.wordpress.com [Link] Report threatening or abusive post: please login first  Go to top
qythyx
Newbie



Japan
Joined: Aug 31, 2017
Post Count: 19
Status: Offline
Reply to this Post  Reply with Quote
Re: How to create a down light embedded in the ceiling

Thanks. I'll try your light. Did you also do a double floor/ceiling layer? I guess if you don't have a 2nd floor it doesn't matter since you wouldn't see the light from the top. In my case I do have a 2nd floor.
[Sep 20, 2017 5:18:12 AM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
Ceciliabr
Advanced Member
Member's Avatar

Denmark
Joined: Jul 7, 2013
Post Count: 205
Status: Offline
Reply to this Post  Reply with Quote
Re: How to create a down light embedded in the ceiling

Yes, I have several floors. The trick is to manage the levels.






Cec
----------------------------------------
[Edit 1 times, last edit by Ceciliabr at Sep 20, 2017 11:22:50 AM]
[Sep 20, 2017 11:07:48 AM] Show Printable Version of Post    View Member Profile    Send Private Message    http://cecprojects.wordpress.com [Link] Report threatening or abusive post: please login first  Go to top
VeroniQ
Advanced Member



France
Joined: Mar 3, 2015
Post Count: 268
Status: Offline
Reply to this Post  Reply with Quote
Re: How to create a down light embedded in the ceiling

Nice tip, Ceciliabr. Thank you!
[Sep 20, 2017 4:43:39 PM] Show Printable Version of Post    View Member Profile    Send Private Message    Hidden to Guest [Link] Report threatening or abusive post: please login first  Go to top
qythyx
Newbie



Japan
Joined: Aug 31, 2017
Post Count: 19
Status: Offline
Reply to this Post  Reply with Quote
Re: How to create a down light embedded in the ceiling

Thank you very much for this, it's great.

One question, is it possible to make the hole a cylinder within a cylinder instead of within a square? What tools do you use to make these objects?
[Sep 25, 2017 8:37:23 AM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
Ceciliabr
Advanced Member
Member's Avatar

Denmark
Joined: Jul 7, 2013
Post Count: 205
Status: Offline
Reply to this Post  Reply with Quote
Re: How to create a down light embedded in the ceiling

@gythyx

One question, is it possible to make the hole a cylinder within a cylinder instead of within a square?

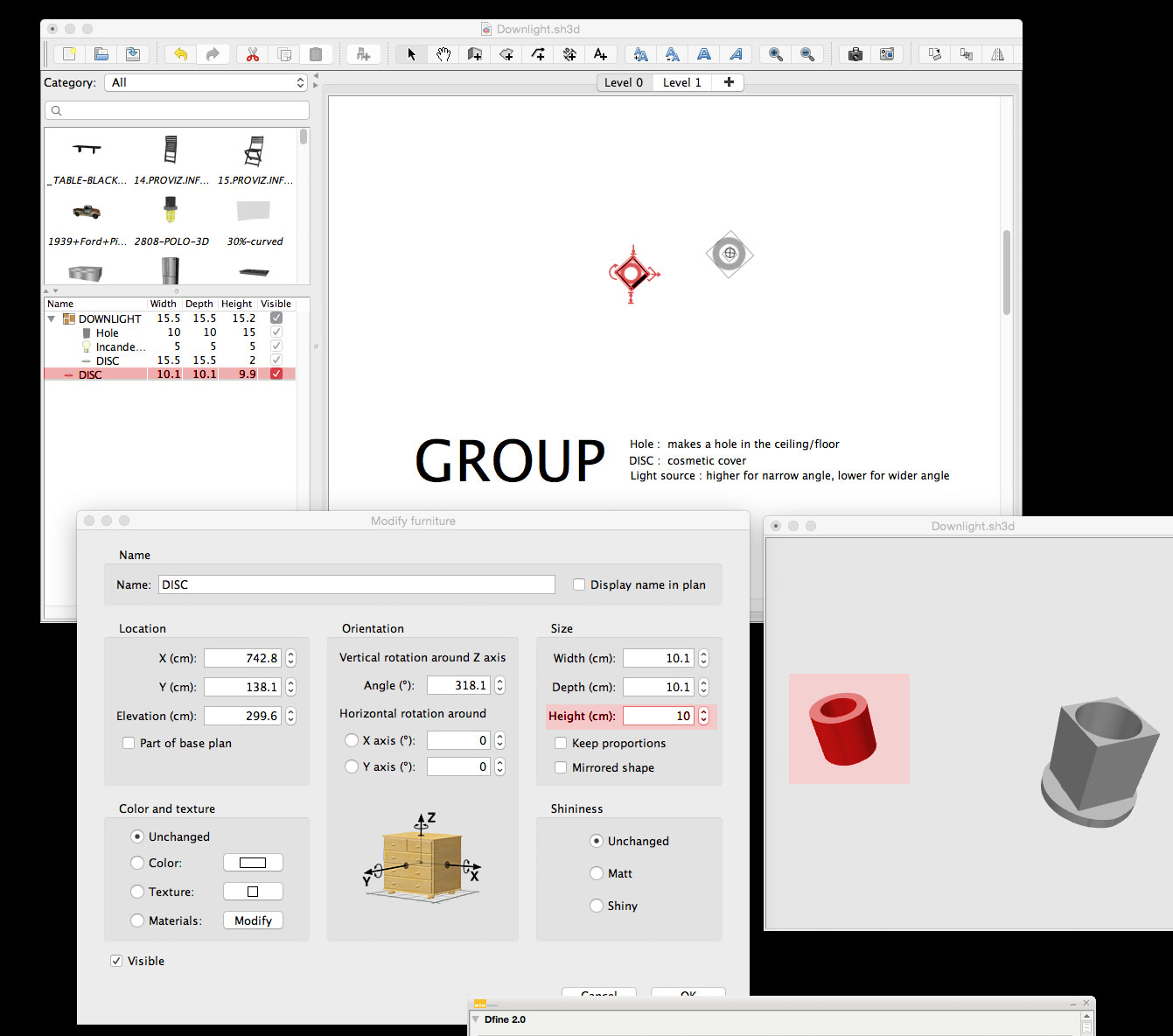

Well, the cylinder with a hole in it is already there:

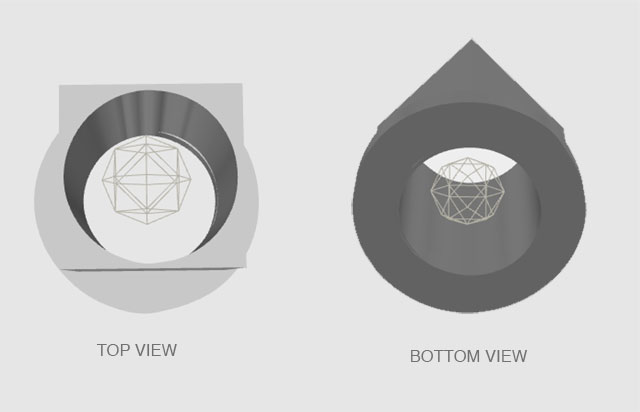

Just export the selection (disc) as 3D object, an re-import it as furniture, and remember to have the "stairs" option selected.

The reason I chose a square was that whether I insert a square or a cylinder into a ceiling, it will make a square hole anyway.
I know there are ways of fixing that, but I haven't yet had time to explore the hidden subtleties of this wonderful program to their full extent.
Maybe someone who has more insight would care to join the discussion?

What tools do you use to make these objects?

The objects are made with 3D extrusion in Photoshop, since it's a program I'm familiar with and have at hand.



But there are lots of less expensive (even free) apps that can do 3D-extrusions. Maybe Gimp can do it...? Maybe someone has a suggestion?

And – while I'm at it:

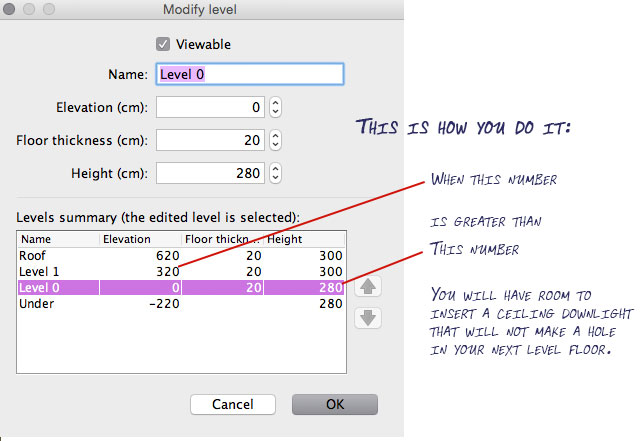

In my example illustration, the floor thickness is 20 cm. Normally I use 2 cm for floor thickness, since floor separators are closer to 20 cm than to 35 cm heigh.

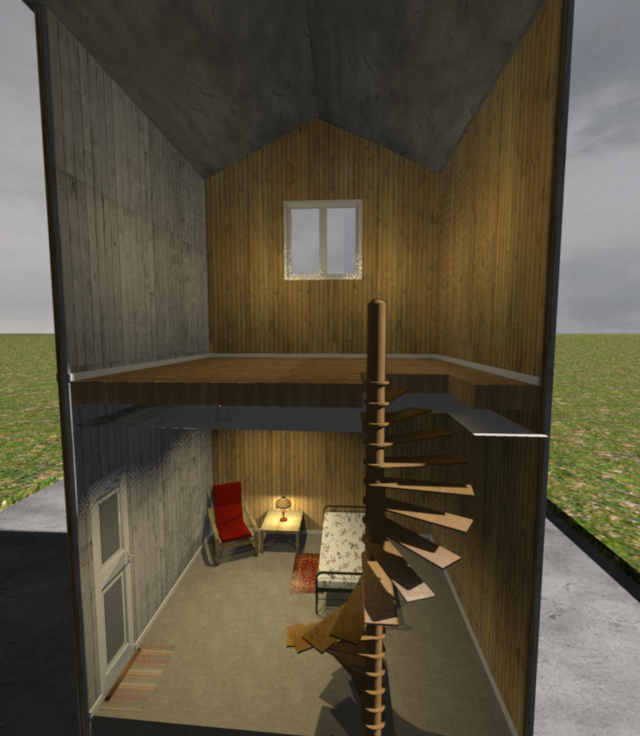

This will, however, create a small problem when inserting stairs, since the floor thickness will no longer cover the hole in the floor.

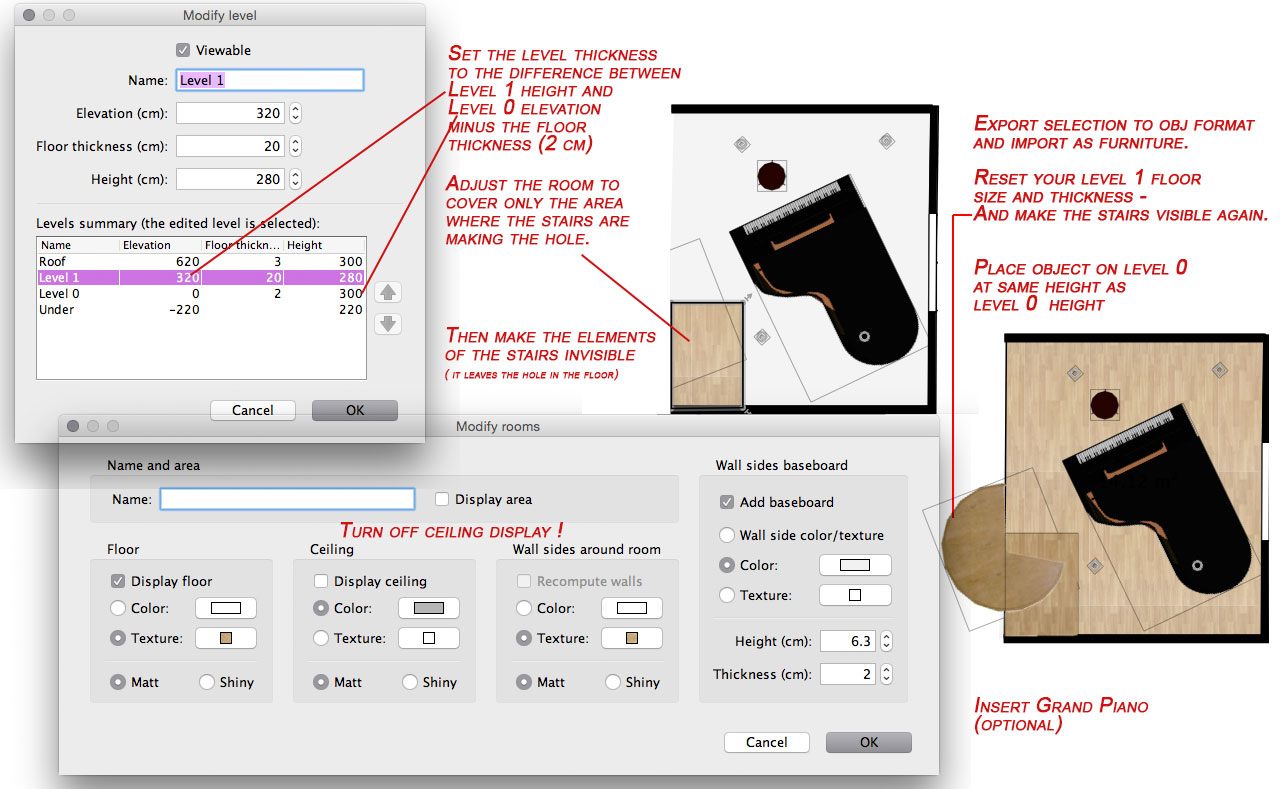

So, here is what I do:


Since the ceiling is a one-sided plane, it is only visible from below.


Hope this is making sense. I'm suffering from a slight attack of "morning sickness" these days...



cec
----------------------------------------
[Edit 5 times, last edit by Ceciliabr at Sep 25, 2017 4:42:13 PM]
[Sep 25, 2017 4:07:30 PM] Show Printable Version of Post    View Member Profile    Send Private Message    http://cecprojects.wordpress.com [Link] Report threatening or abusive post: please login first  Go to top
hansmex
Advanced Member
Member's Avatar

Netherlands
Joined: Sep 26, 2009
Post Count: 3064
Status: Offline
Reply to this Post  Reply with Quote
Re: How to create a down light embedded in the ceiling

Morning sickness?
Are congratulations in order??

H
[Sep 26, 2017 8:19:47 AM] Show Printable Version of Post    View Member Profile    Send Private Message    Hidden to Guest [Link] Report threatening or abusive post: please login first  Go to top
Ceciliabr
Advanced Member
Member's Avatar

Denmark
Joined: Jul 7, 2013
Post Count: 205
Status: Offline
Reply to this Post  Reply with Quote
Re: How to create a down light embedded in the ceiling

@Hansmex

12 weeks, so it's official smile

Thanks!


cec
[Sep 26, 2017 9:03:36 AM] Show Printable Version of Post    View Member Profile    Send Private Message    http://cecprojects.wordpress.com [Link] Report threatening or abusive post: please login first  Go to top
hansmex
Advanced Member
Member's Avatar

Netherlands
Joined: Sep 26, 2009
Post Count: 3064
Status: Offline
Reply to this Post  Reply with Quote
Re: How to create a down light embedded in the ceiling

Thinking of an appropriate way to say "congratulations", I searched Google with "denmark 12 weeks custom" and THIS is what it comes up with...

So what is it going to be: a couch or a bike? Confusing customs...
----------------------------------------
[Edit 1 times, last edit by hansmex at Sep 26, 2017 10:39:05 AM]
[Sep 26, 2017 10:38:11 AM] Show Printable Version of Post    View Member Profile    Send Private Message    Hidden to Guest [Link] Report threatening or abusive post: please login first  Go to top
Posts: 30   Pages: 3   [ 1 2 3 | Next Page ]
[ Jump to Last Post ]
Show Printable Version of Thread  Post new Thread

    Get Sweet Home 3D at SourceForge.net. Fast, secure and Free Open Source software downloads

© Copyright 2006-2017 eTeks - All rights reserved
